Find Window in PVRTuneΒΆ

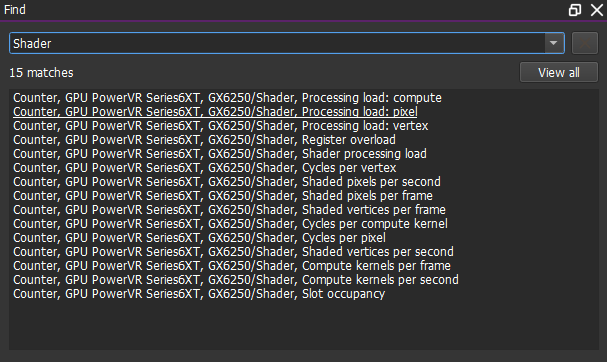

The Find window can be used to quickly search for information within the PVRTune GUI. A number of items can be searched this way, including:

  • Activities, such as Renderer tasks;

  • Marks;

  • Counters, such as Triangles Input Per Draw;

  • Frames;

  • PIDs;

  • Time, as per the x-axis in the graph;

  • View;

  • Time range, by separating two time values with a pair of dots (e.g. 1200.1..1200.2).

../../../_images/image71.png

Counters can be dragged and dropped from the Find window to the graph view to generate new counter plots.

The display of individual timelines can be toggled by clicking on them in the search results.

One or more Find results can be copied, by selecting them then using Ctrl+C or the context menu.

Find results that have an associated time range can be clicked to centre them in the view (if they are partially or entirely off-screen), or double-clicked to both centre on the time-range and set the zoom such that it nearly fills the view.

When Find is active (has a search term) then matching Tasks will be shown normally in the timing data (when shown in a graph pane) and other tasks will be dimmed.
